PolySorb polyester panel install samples show the many ways of being installed. Vertically on a wall, horizontally on a ceiling, hung down from a ceiling, hung offset of a wall and many other creative ways. Here are a few installation photos to see the process and results. Click on photos to see larger version.
Call 206-571-5710

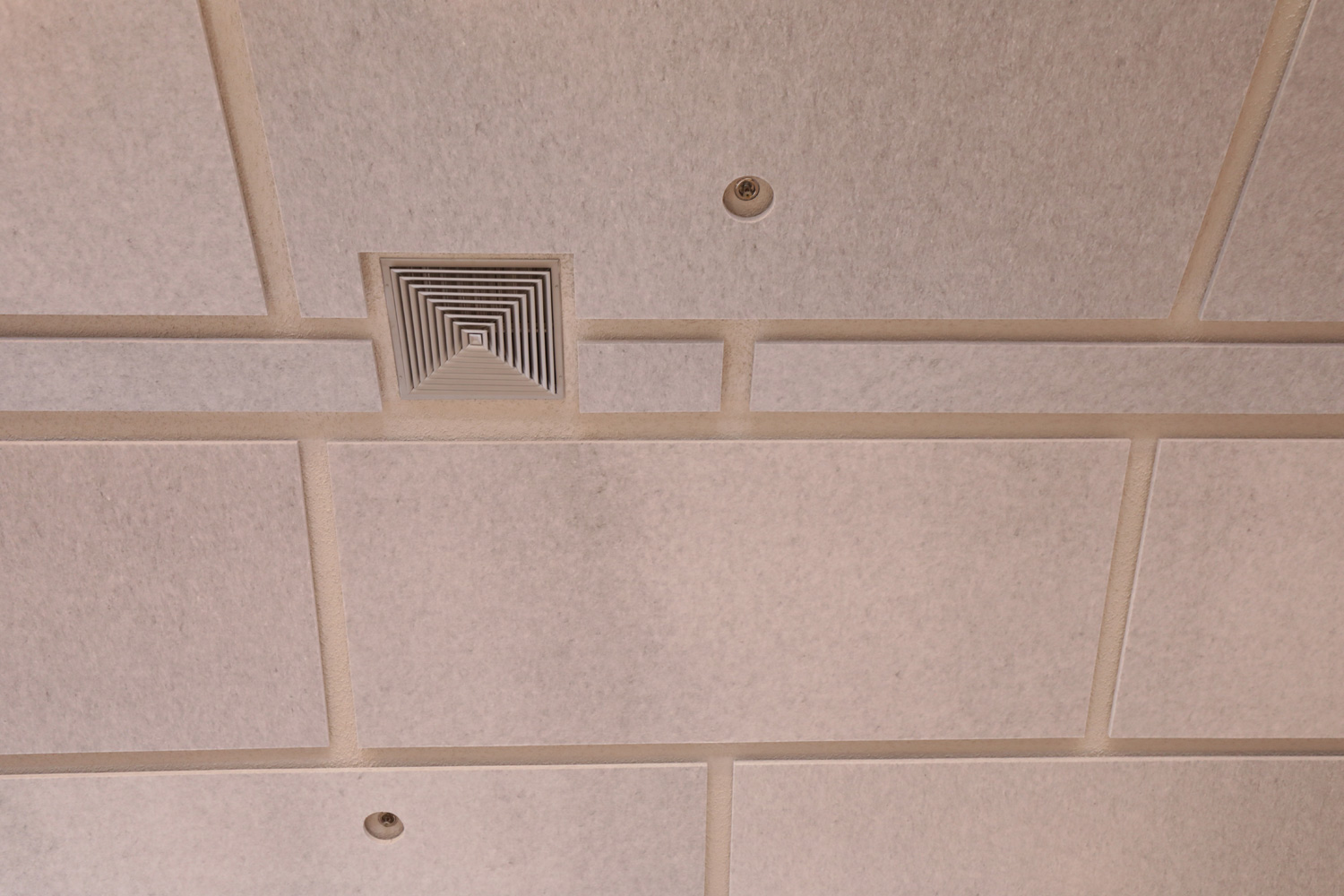

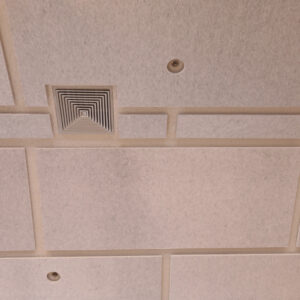

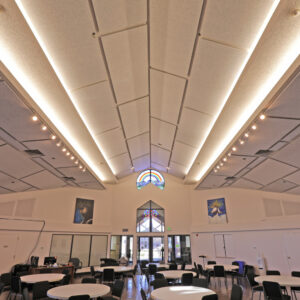

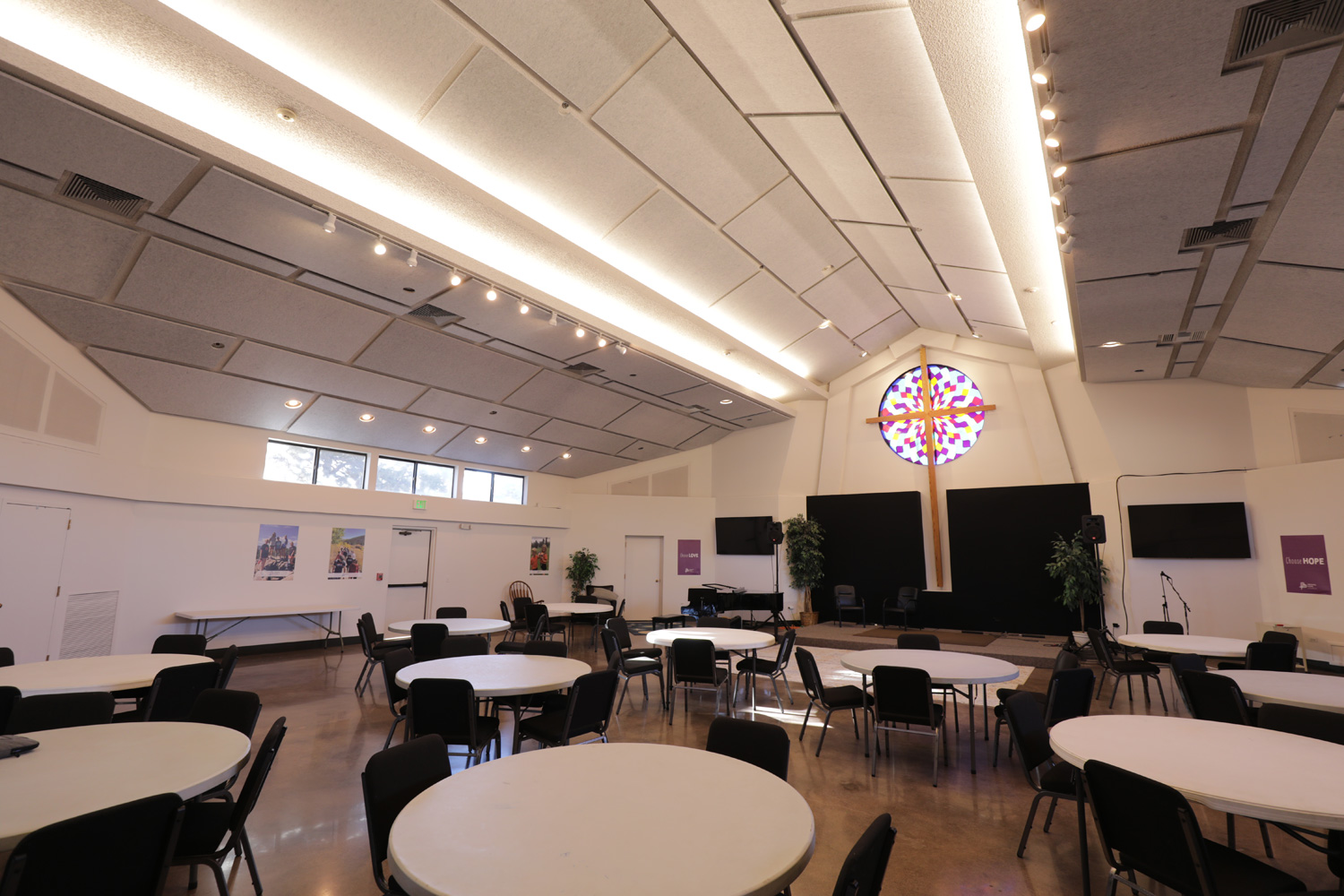

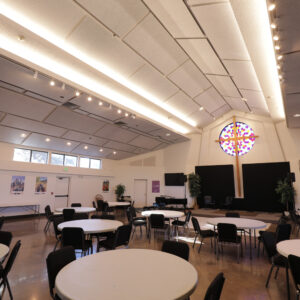

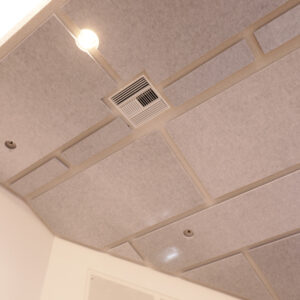

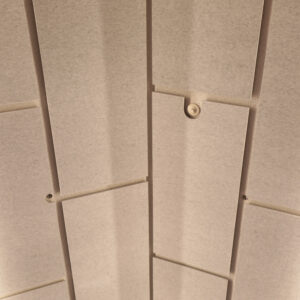

Family Life Center at Abiding Hope Church

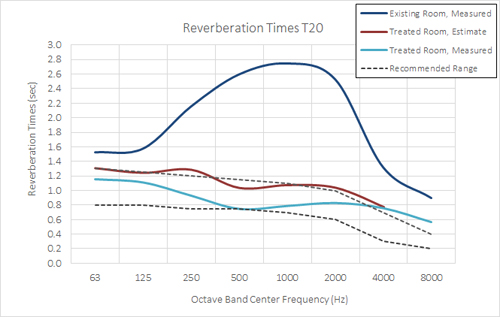

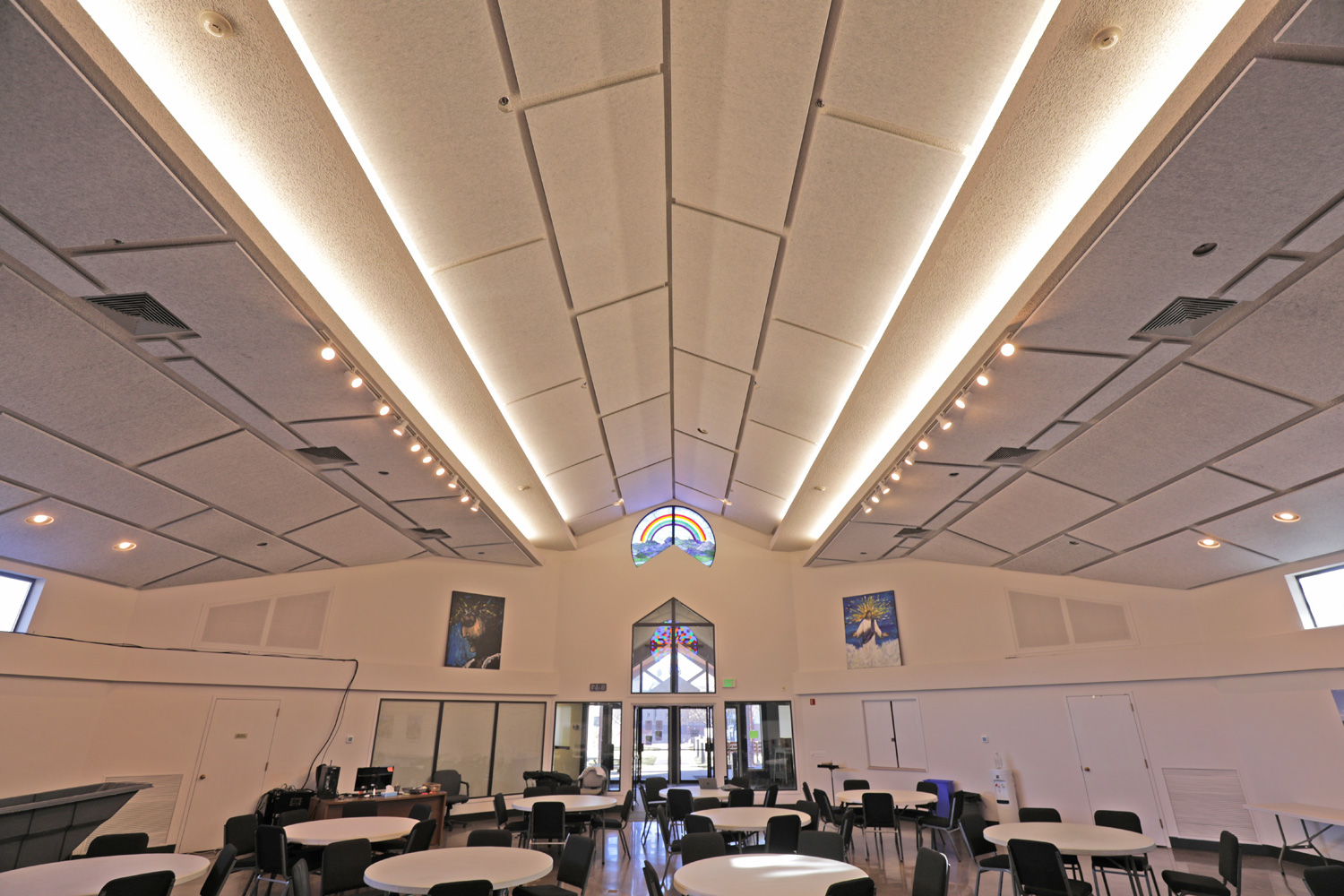

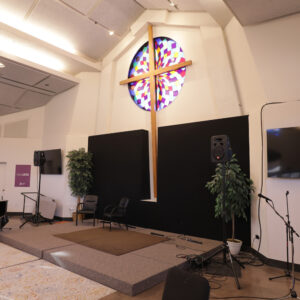

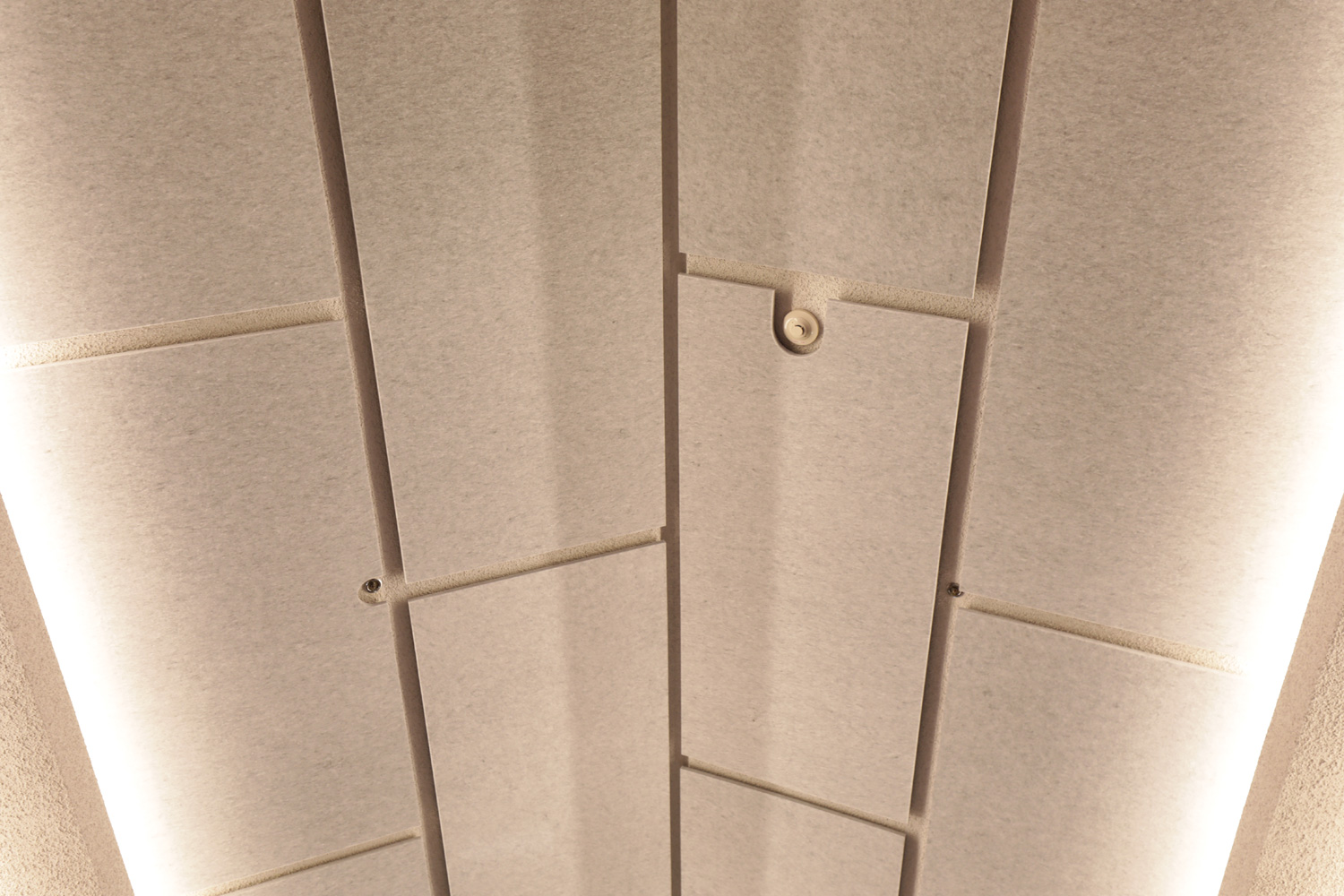

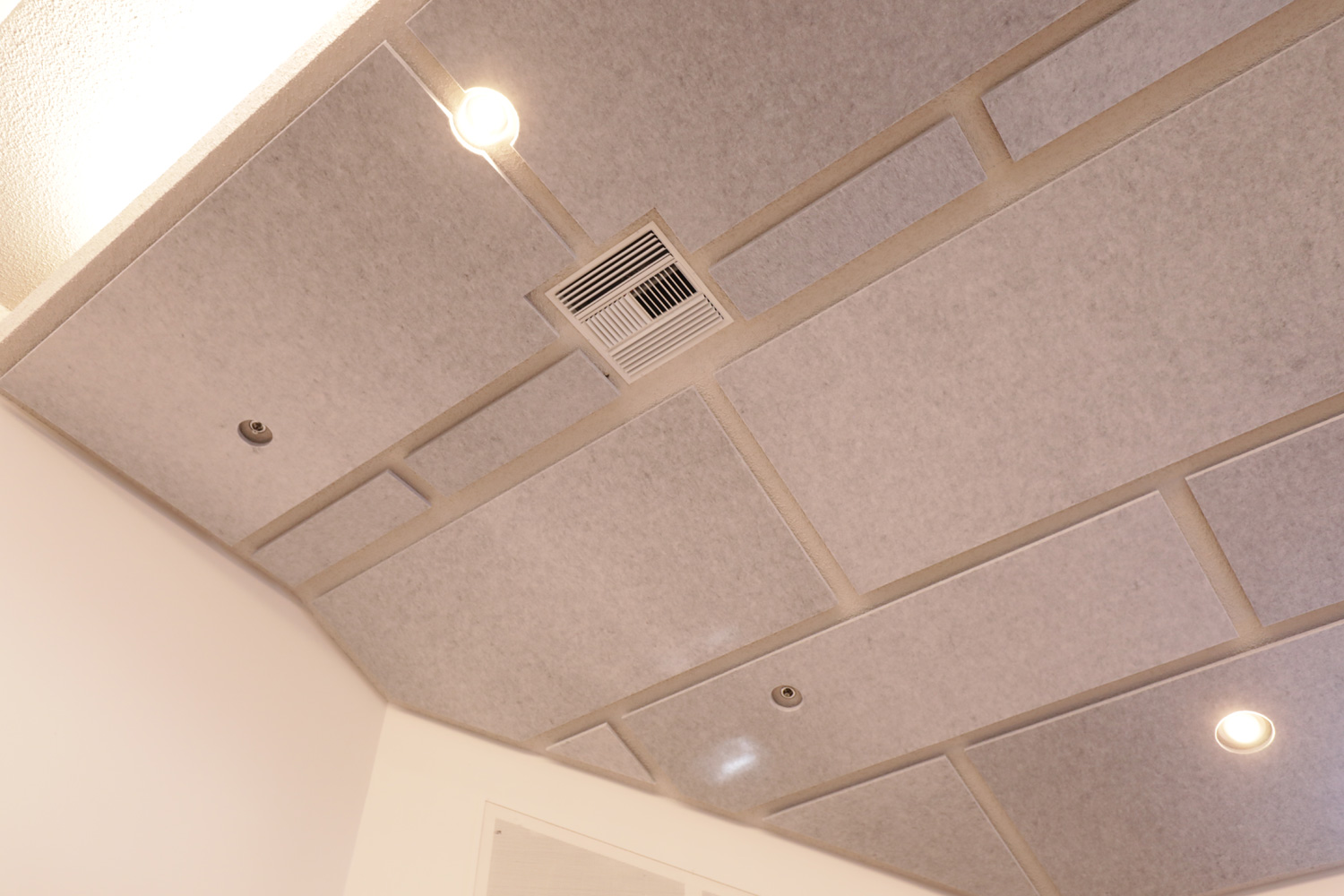

An intricate ceiling panel system and front wall baffle dramatically improved this multipurpose room’s reverberation issues. RT measurements were taken prior to and after installation to validate the results of adding PET panels. See test results. Installation by: Contour Audio

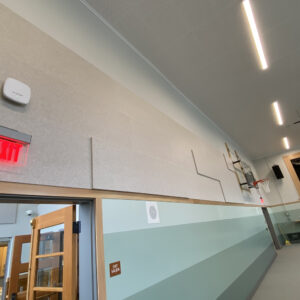

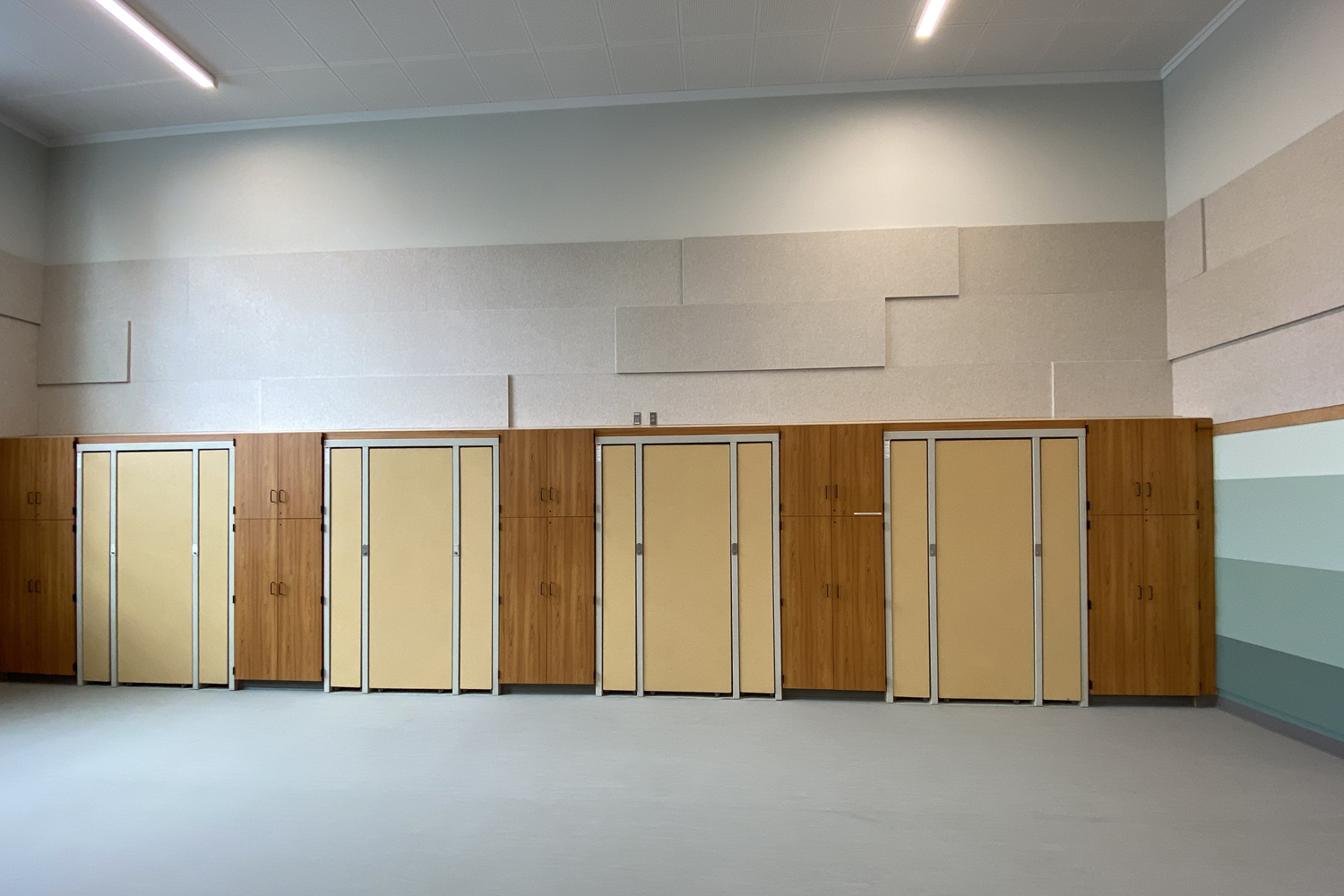

Historic Thompson Elementary School

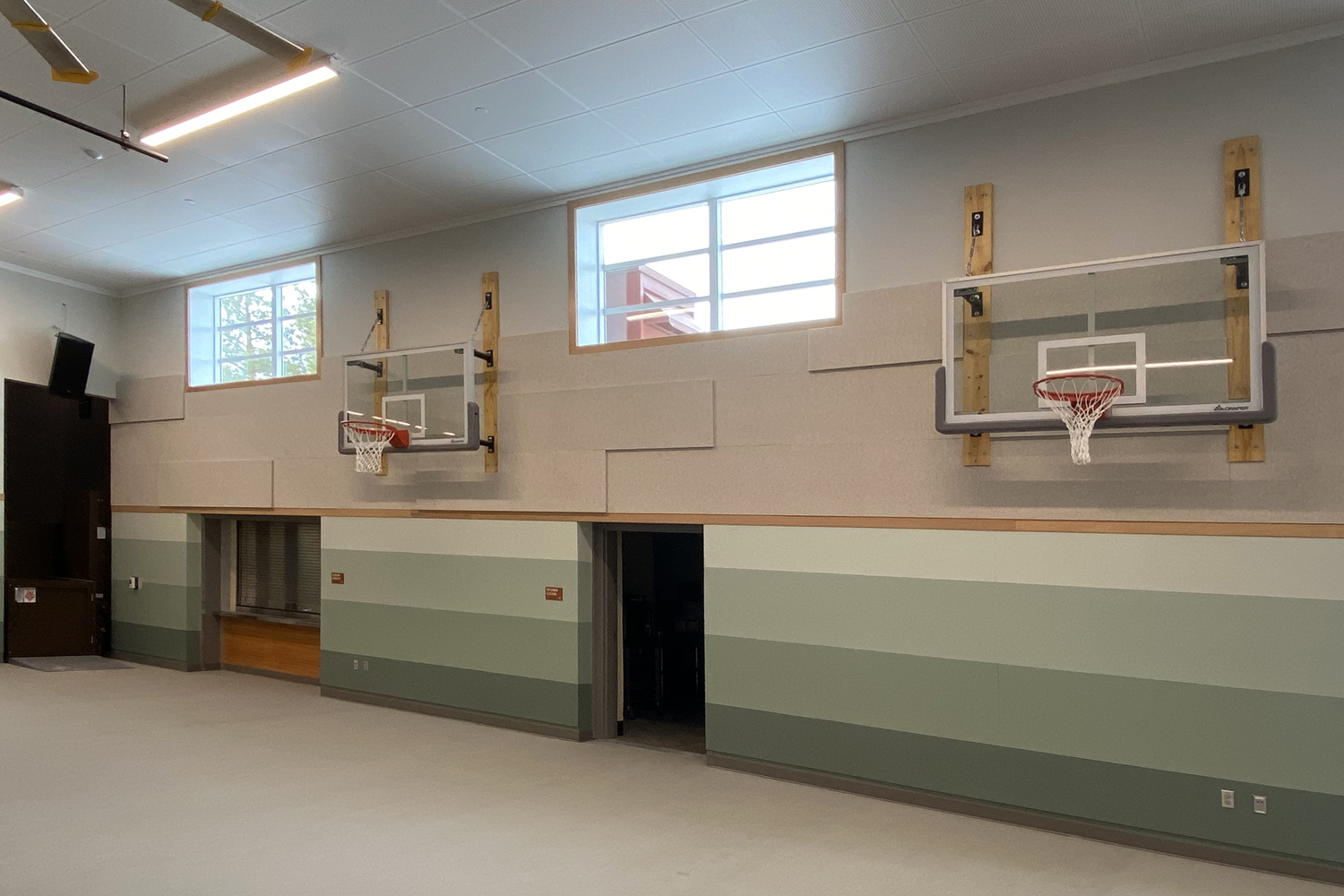

Beige colored PET acoustic panels were attached to the upper wall areas in the school gymnasium. This dramatically cut down on the noise reverberation during athletics, lunch and public meetings. PolySorb’s sister company, GypSorb, installed their sound absorbing gypsum perforated panels to the common area ceilings to further attenuate sound reverberation.
Polyester Panel Install Samples In A Tech Services Building
White colored acoustic panels suspended from the ceilings of corridors and common areas to dampen vocals, sounds from foot traffic and equipment.
Cascade Acoustics Light Industrial Space
Soft grey colored acoustic panels installed on the walls and suspended ceiling clouds help mitigate noise reverberation in this industrial space in Portland, OR. Panels were hung using cables, adhesives and PetClips in difficult to access areas.
WSCC Retail Store
This massive retail wall was set up with soft grey colored decorative panels to help mitigate noise reverberation and blend into the paint colors and natural wood details. This tall wall has wrapped corners and seamless panels to create a smooth look. The wall was first paneled with thick plywood for a strong mounting of shelving units.
Tillamook Cheese Retail Store
These common and retail area ceilings and walls were set up with soft natural colored decorative panels to help mitigate noise reverberation and blend into the paint colors and natural wood details.
Whidbey Island Fire Department
These common area ceilings and walls were set up with soft natural colored decorative panels to help mitigate noise reverberation and blend into the paint colors.
CHC Physical Therapy
These common area ceilings and walls were set up with soft natural colored decorative panels to help mitigate noise reverberation.
Polyester Panel Install Samples In Selah SD Primary School
These common area walls were set up with multi-color decorative panels to help dampen noise reverberation. Fairly simple, very effective.
Vance Building, Conference Room
These walls were set up with panels to make a conference room more comfortable with better sound dampening their audio visual room. To further help in noise reduction they hung panels from the ceiling.
Mithun Architecture
This is a remodel fitment of panels in a conference room. This illustrates the process of setting up an existing ceiling with our patented PetClip mounting system. Notice the precise reveals at the borders and between panels. Cut outs for lights and re-connection of the fire safety equipment looks like it was meant to be designed this way.
This is a remodel fitment of panels on a conference room wall that illustrates the process of setting up an existing wall. Notice the precise reveals at the borders and between panels. Cut outs for electrical outlets are precise as well. Professionally installed by STNW.
Benaroya Octave 9 Sound Studio
Very high performance sound studio at Benaroya Symphony Hall.
• 1/2″ Silver Gray panels custom cut to the architects specifications for an esthetic and highly efficient sound dampening system.
Polyester Panel Install Samples In The Salem Public Library
Newly renovated Salem Public Library waffle ceiling grid.
• 2″ Cloud ceiling panels custom cut to fit between the legacy ceiling grids.
Twality Middle School
Newly completed Twality Middle School common areas.
• 2″ Cloud ceiling panels custom cut to fit between the rafters. A real labor saver! Also see our GypSorb product in this school. Click here
Kalama
Newly completed Kalama gym and common areas.
• 1″ and 2″ Cloud ceiling and wall panels in unique sizes
Polyester Panel Install Samples In The Lakeview Library
Newly completed Lakeview Library, Oregon
• 1″ and 2″ Cloud Ceiling, Baffle and Wall Panels
Skagit County Library
Newly completed Skagit County Library, Washington
• 1/2″ White Ceiling Panels
• 1/2″ Silver Gray Ceiling Baffles
The Center for Wooden Boats
Newly completed Center for Wooden Boats in Seattle by Olsen, Kundig, Allen Architects.
• 2″ Obsidian on ceilings with 2″ air gap
• 1″ Obsibian on walls direct to plywood
F5 Network Corporate Offices
• 2″ Cloud and Dark Grey cable hung from the ceilings
• 2″ Dark Grey suspended from ceiling
Polyester Panel Install Samples In Restaurant Projects
Jade Fusion Restaurant at Angel Of The Winds Casino
• 1/2″ Sesame on walls direct to wall board
• 1″ Sesame on ceiling with air gap
Copine Restaurant
• 1/2″ Cloud suspended from ceilings with air gap
Evergreen Pizza Restaurant
• 1/2″ Cloud suspended from ceilings with air gap
Honda & Toyota of Seattle Car Dealerships
• 2″ Cloud direct to ceiling and wall and suspended from ceilings too
Lynndale Elementary School Exterior
• 2″ Dark Grey direct to ceiling
Seattle Opera House
• 2″ Grey cable hung and direct to wall
MS B124 Sound Studio
• 2″ Multi colored and cut pattern mounted direct to wall
Polyester Panel Install Samples In WeWork Studio
• 1/2″ Cloud panels mounted direct to wall
Installation is made easy with our patented PetClips. Screw or adhere these into a solid anchor point and our light weight panels are easily pushed onto the protruding posts for a secure, yet reposition able, install. For more installation information CLICK HERE
