Easy To Install PETClip® Polyester Board Mounting System
PETClip® Polyester Board Mounting System. PolySorb™ PET Acoustic Panels are very easy to install. They can be directly glued to sheetrock walls and ceilings or any other form of board such as plywood, cement board, cement walls etc. using a strong adhesive. PolySorb also has their patented PETClip® system. Panels can be cut into any shape and size using a sharp blade or Festool saw blade.
High Acoustic Properties
PolySorb™ PET acoustic boards provide a relatively high Noise Reduction Coefficient. These acoustic panels have a NRC value range from 0.45 – 1.05, making them an ideal product for theaters, auditoriums, office space, conference rooms, recording studios and any other space that needs sound reverberation abatement.
Maintenance
PolySorb™ PET Acoustic Panels are made from the highest quality, high density polyester materials. They do not require any form of special maintenance. Regular vacuuming and cleaning with PolySorb cleaner is sufficient in order to maintain their integrity, efficiency and beauty.
Ecofriendly
PolySorb™ PET Acoustic Panels are very safe and ecologically friendly. The composition of acoustic panels comprises of up to 100% recycled PET. And PolySorb Acoustic Panels do not produce any harmful substances during installation unlike fiber glasswool or mineral rock wool. PolySorb products are non-carcinogenic and contains no harmful substances of any nature, and are 100% recyclable.
Longevity
PolySorb’s focus is on providing the highest quality materials with a high longevity. PolySorb™ PET Acoustic Panels are made from high quality raw materials and with minimal maintenance, these panels will not degrade or fade for a period of 10+ years.
Thermal and Heat Insulation
In addition to having superior sound absorption properties, PolySorb™ PET Acoustic Panels provide excellent insulation values from cold and heat as well.
PETClip® mounting clips are proprietary components of the PolySorb panel system and are available only with the purchase of PolySorb panels.
Clip quantities are issued based on verified panel quantities and are not sold separately.
PETClip® Polyester Board Mounting System. Installation is made easy with our patented 1″ 2 prong, 2″ 2 prong, and 1″ 4 prong and 2″ 4 prong PETClips®. Screw or adhere these clips on to a solid anchor surface and our light weight PET panels can be easily pushed onto the protruding prongs for a secure install.
Patent information seen here.
“The PETClip impalers were great to work with. We used them in conjunction with a furring strip to stand the boards off of the popcorn ceiling. It worked seamlessly and allowed all of the mounting hardware for the panels to be hidden which was an aesthetic the client appreciated”
– Ryan B. Contour Audio & Acoustics
PETClip Polyester Board Mounting System

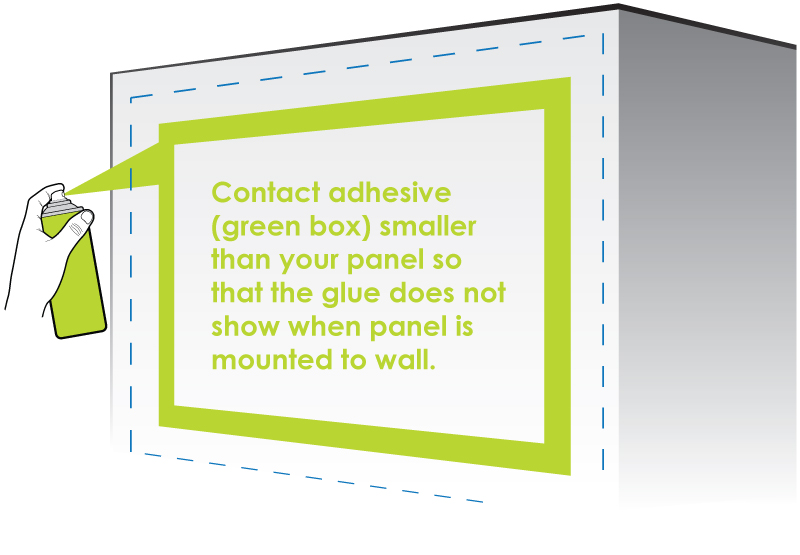

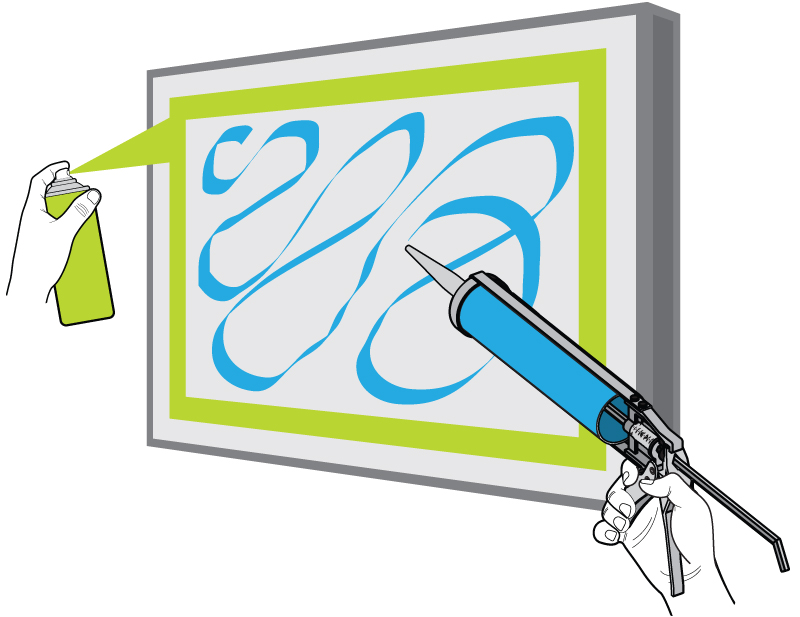

Glue Down Installation Guidelines
Wall Side (backside) of PolySorb panel
Wall or ceiling face

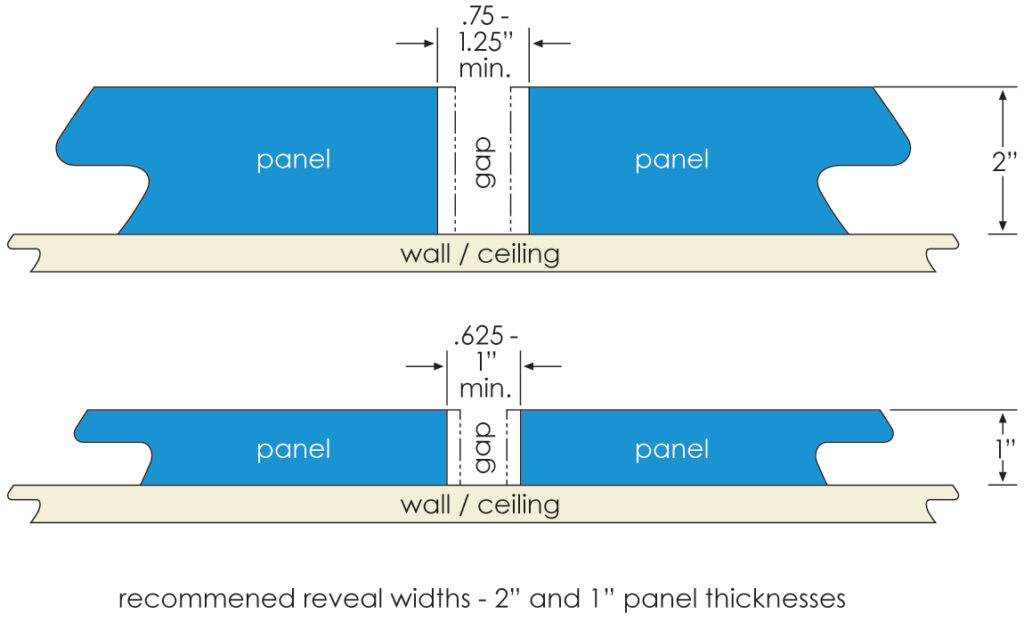

Recommended Reveal Gaps
For PDF Flyer – CLICK HERE
IMPORTANT INSTALL NOTICE
CORRECT PANEL ORIENTATION

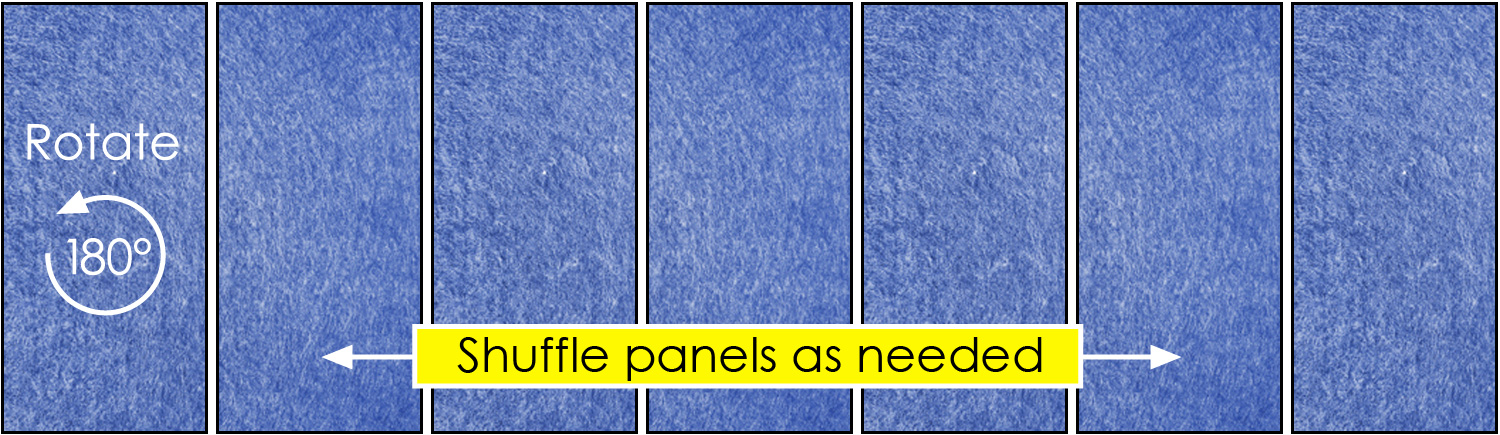

The orientation of panels is important as there are fiber directions that effect light refraction and shading that makes the panels look different A.
Due to the manufacturing process, fiber directions may slightly vary making it important to install all panels in the orientation recommended on the manufacture’s label on the backside of each panel.

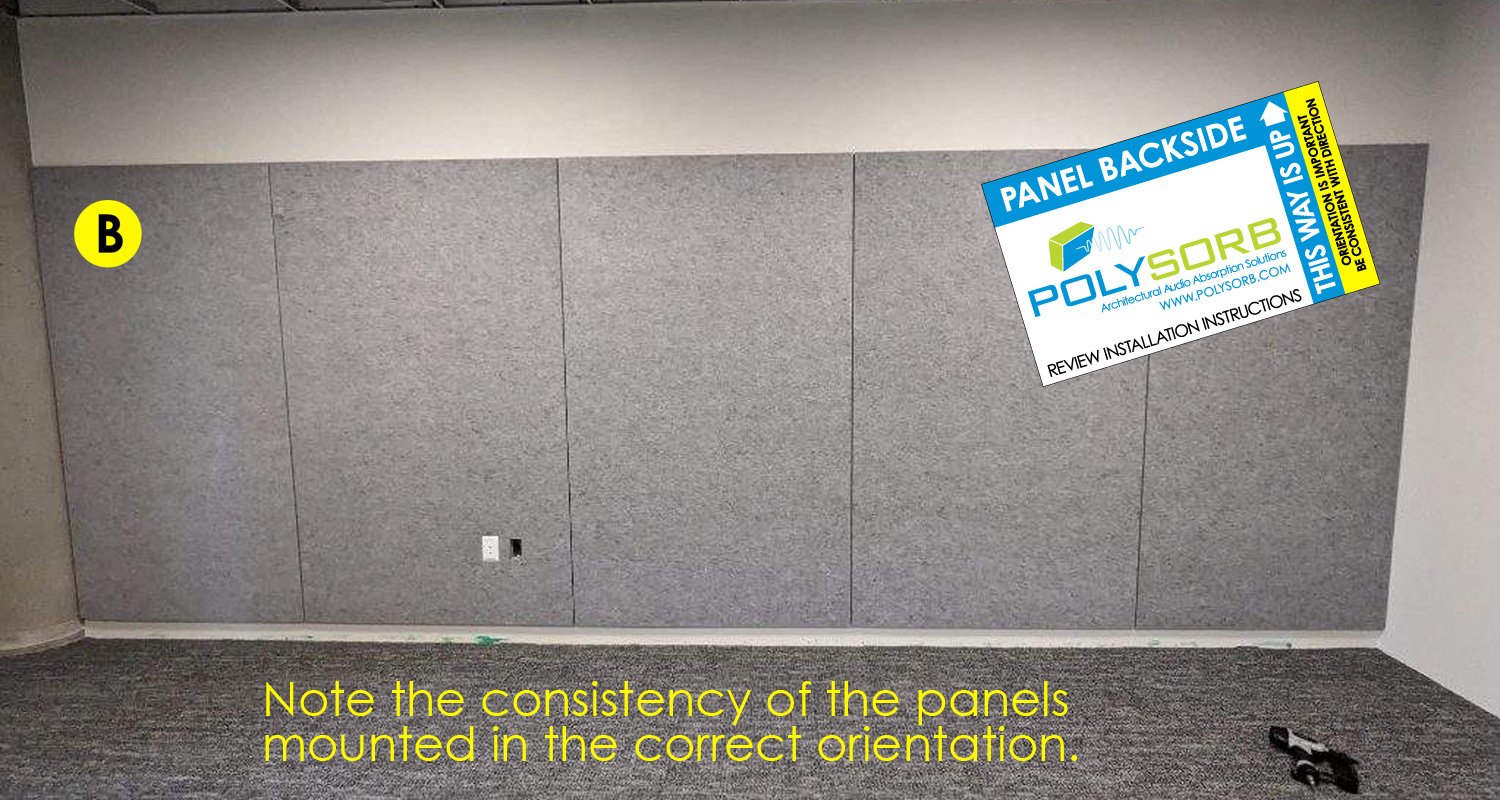

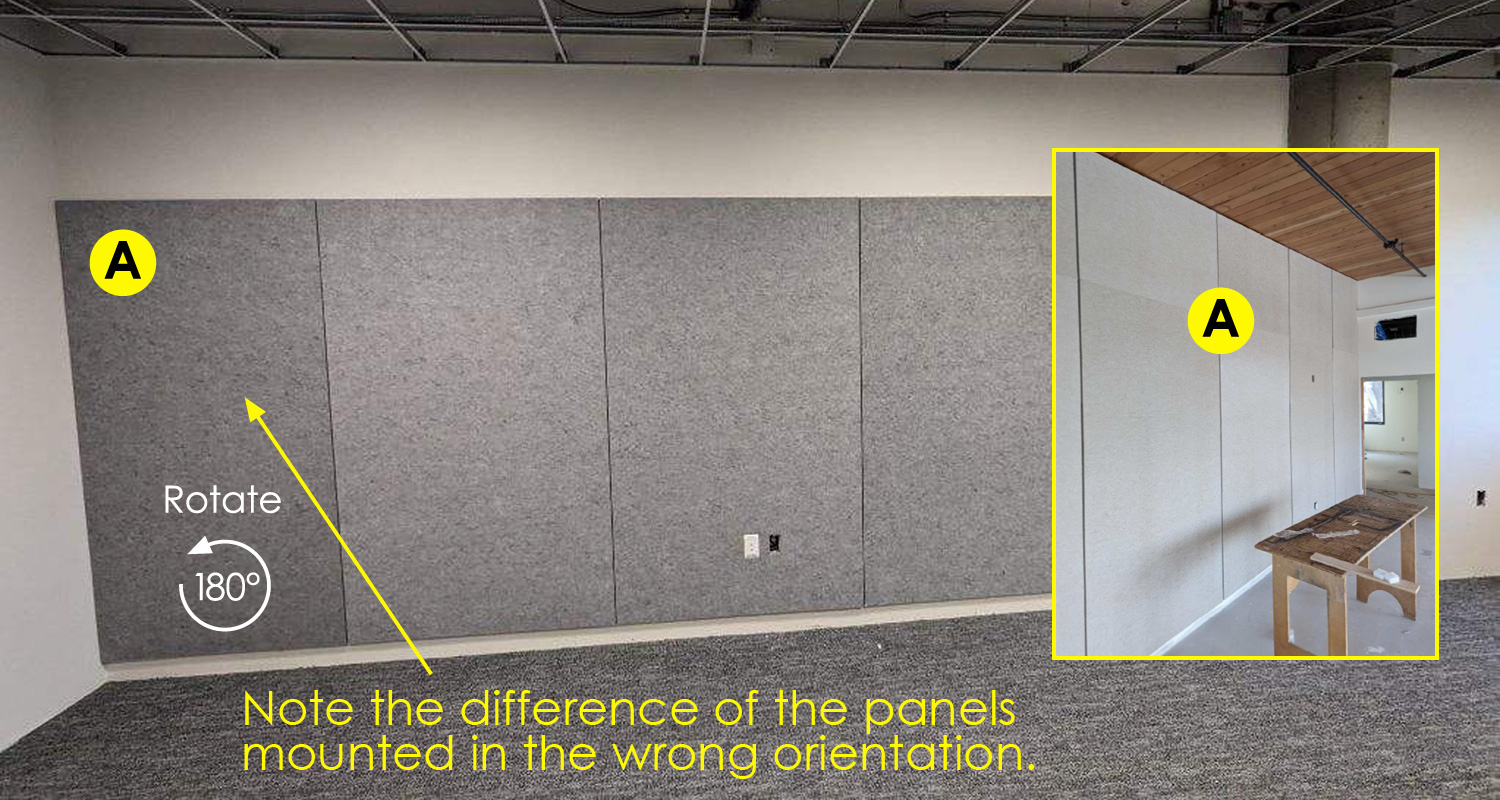

If panels are not installed as recommended, they may have a different look even though the color is correct. This is because the fibers are directional. If the panels are not installed correctly, the hue will look different as seen on image A and correctly on panels in image B.
We suggest that you mock up the install prior to final mounting to make sure the panels all look consistent. Once you are confident in the consistency you can continue with the final installation.
